Description

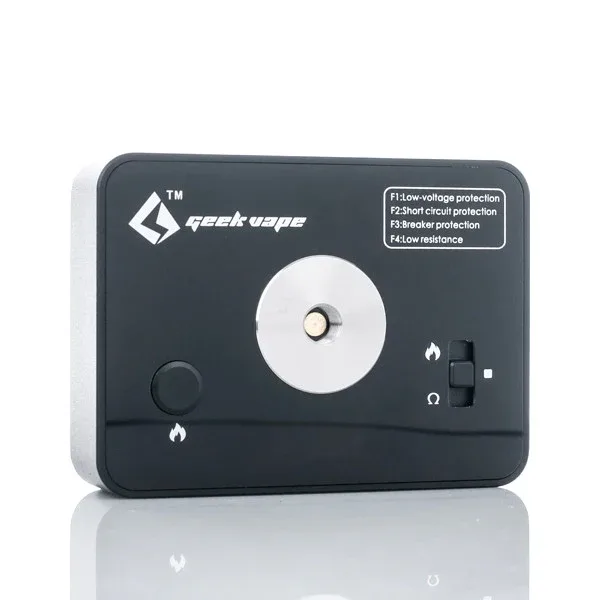

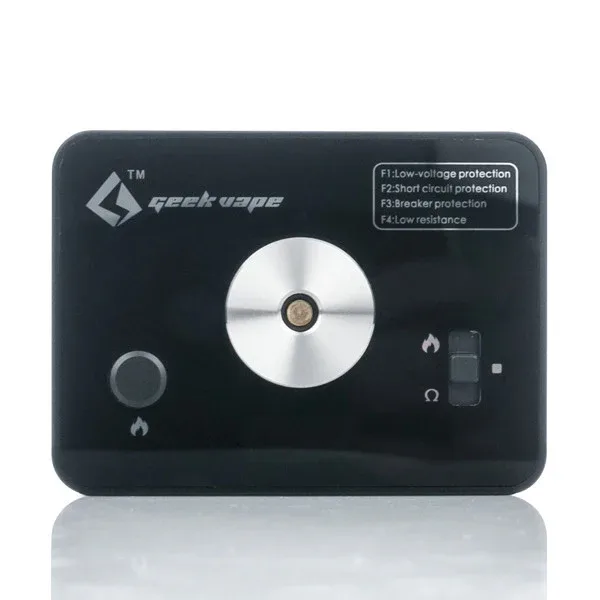

The GeekVape 521 Tab Mini Ohm Meter is the smaller, more sophisticated version of the original 521 Tab. The chassis now measures 83 x 61 x 24mm, dimensionally smaller in every dimension. It offers an elite level ohm meter with precise accuracy, test fire station, OLED Screen and spacious build deck. Two new features are now integrated with the Mini platform, with a battery life indicator now positioned next to the metering readout along with the USB Charging port. The 521 Tab Mini can be powered by a single 18650 battery (Sold Separately) which now can be charged via the integrated USB Port.
A three way selector offers dual mode capability: Ohm Reader Mode and Fire Burning Mode. In Ohm Reader Mode, the 521 Tab Mini easily and accurately test the resistances of coils and atomizers with a range of 0.01ohms to 9.9ohm. In Fire Burning Mode, the 521 Tab Mini is capable of dry burning atomizers with a output wattage of 31 to 33W alongside minimum resistance of 0.1ohm, giving builders live feedback on resistance levels, allowing users to quickly and efficiently test and adjust builds without removal of the device itself.
The 521 Tab Mini integrates a heavy duty 510 connector with a gold plated spring loaded connection for durability and a wide range of compatibility with different platforms. Upgraded in nearly every way, the GeekVape 521 Tab Mini Ohm Meter is an essential compact case for all DIY building enthusiasts.
Features:
Dimensions: 83 x 61 x 24mm
Input Voltage: 2.7 – 4.2V
Output Voltage: 1.8 – 4.2V
Currents: 5 – 14uA
Burning Protection: 14.5 – 15.5S
Output Wattage: 31 – 33W
Measuring Range: 0.01 – 9.9 ohm
Lowest Fire Resistance: 0.1ohm
Function Mode: Ohm Reader Mode, Fire Burning Mode, Off Mode
Elite Ohm Reader
Test-Fire Capability
Dry Burn DIY Coils
Spacious Coil Rebuilding Deck
Intuitive LED Screen
Resistance and Battery Level Indicator
Reverse Battery Protection
Low-Voltage Protection
Short Circuit Protection
Breaker Rrotection
Low Resistance
High Temperature Protection
Single 18650 Battery (Sold Separately)
USB Charging Port
Spring-Loaded Gold-Plated 510 Connection
Package Includes:
1 x GeekVape 521 Tab Mini Ohm Meter
