Description

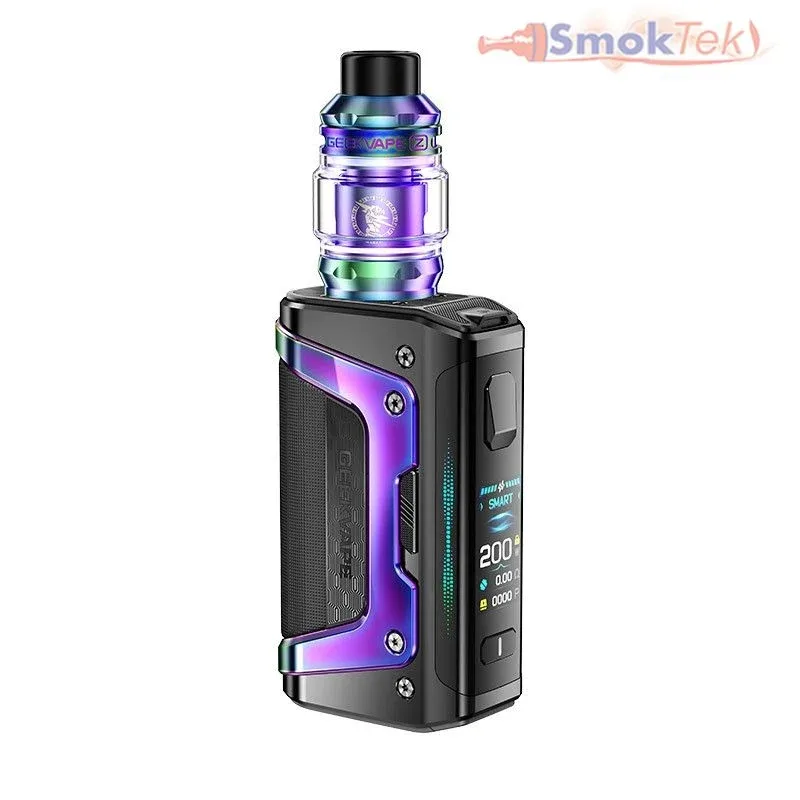

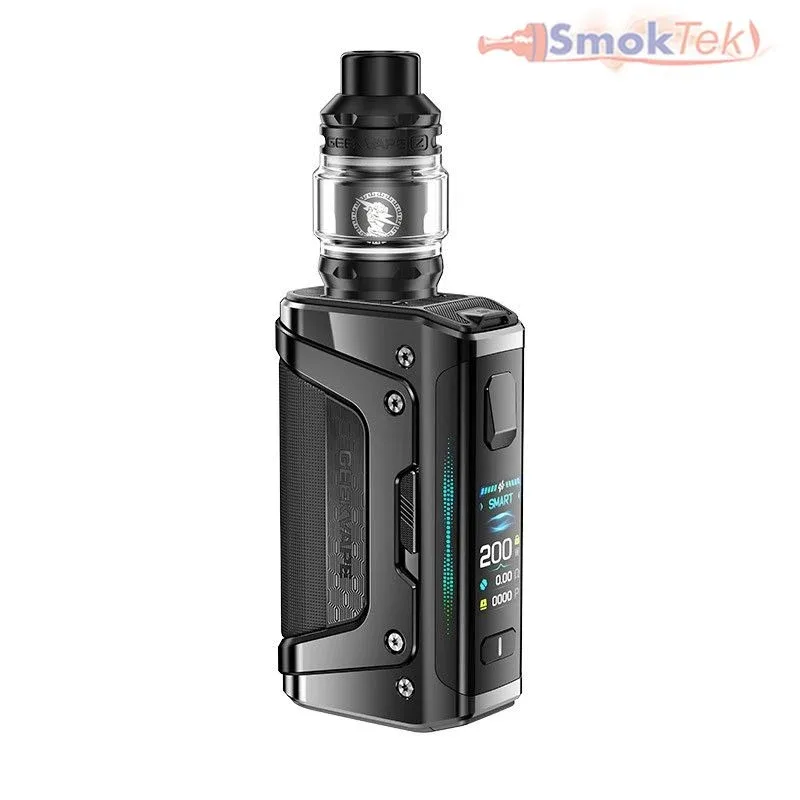

Geekvape Aegis Legend 5 200W Kit
The Geekvape Aegis Legend 5 Kit pairs the rugged, IP68-rated Aegis Legend 5 mod with the upgraded Z Sub-Ohm Tank 5. Powered by dual 18650 batteries (sold separately) and the AS Chip 4.0 with 0.01-second firing, it delivers up to 200W of fast, stable output.
The tri-proof metal chassis is built to resist water, dust, and drops, and the 1.08″ TFT color screen keeps every setting visible at a glance. Paired with the Z Tank 5’s top push-to-fill system and Z XM Boost coils, this kit is made for direct-to-lung vaping with rich flavor and dense vapor.
Batteries are NOT included. This mod requires two flat-top, high-drain 18650 batteries — see Recommended 18650 Batteries below. Button-top cells will prevent the battery door from closing.
Key Features
5–200W output with ECO / SMART / NORMAL / CUSTOM / TC modes
AS Chip 4.0 — 0.01s firing speed
IP68 tri-proof: water, dust, and shock resistant
1.08″ TFT full-color display with dynamic lighting
A-Lock safety switch prevents accidental firing
Laser-etched metal chassis with textured grip
Z Sub-Ohm Tank 5 with leak-resistant top airflow and push-to-fill top cap
Up to 60mL of coil life per Z XM Boost coil
Specifications
Output Power: 5–200W
Max Output Current / Voltage: 45A / 12V
Resistance Range: 0.1–2.0Ω (included coils: 0.2Ω and 0.4Ω)
Batteries: Dual external flat-top 18650 (not included)
Charging: USB Type-C
Connection: Spring-loaded 510
Tank Capacity: 5.5mL (7mL glass available separately)
Tank Dimensions: 29mm (W) x 56.1mm (H)
Drip Tip: 810 replaceable
Coil Installation: Press-fit
Operating Temperature: 0–45°C
Colors: Earth Brown, Aurora Rainbow, Glacier Green, Frost Silver, Carbon Black, Turbo Red, Twilight Blue, Racing Gold
Kit Includes
1 x Geekvape Aegis Legend 5 Mod (batteries not included)
1 x Geekvape Z Sub-Ohm Tank 5 (5.5mL)
1 x Z0.2Ω XM Coil (Boost Version, 70–80W) — pre-installed
1 x Z0.4Ω XM Coil (Boost Version, 50–60W) — spare
1 x Spare Glass Tube
1 x Spare Parts Pack
1 x USB Type-C Cable
1 x User Manual & Warning/Info Cards
Recommended 18650 Batteries (Sold Separately)
This device requires two flat-top, high-drain 18650 cells. We recommend:
Blackcell 18650 3100mAh 40A High-Drain Battery — 2 Pack
Imren Yellow IMR 18650 3500mAh 30A Flat-Top — 2 Pack
IMREN Purple 18650 3000mAh 40A — 2 Pack
Imren Beige IMR 18650 3000mAh 40A Flat-Top — 2 Pack
Replacement Parts & Compatibility
GeekVape Z Series Replacement Coils (5 Pack) — Z XM Boost version recommended for this tank
Geekvape Zeus / Z Replacement Glass Tube (5.5mL) — fits the Z Sub-Ohm Tank
Standard flat-top 18650 batteries
Battery Safety
Always charge 18650 cells in a dedicated external Li-ion charger, such as the TrustFire TR-001 or eFest LUC Smart Charger. Never leave batteries charging unattended, and inspect cells for damage before every use. Improper battery handling can result in fire, injury, or device failure. Use the A-Lock switch to prevent accidental firing when the device is not in use.
