Description
SMOK TFV12 V12 Replacement Coil Pack
The SMOK TFV12 V12 Replacement Coil Pack brings the world class and industry leading coil designs implemented in the TFV8 series to another level, with V12 versions of the popular X4 and Q4 coils range of 60 to 220W and 60 to 190W, respectively. The V12 RBA Head is one of the most capable in it’s class, with an 18mm diameter deck that integrates a two post, dual terminal design with each terminal measuring 2mm in diameter. Ample airflow feeds into the V12 RDA, with dual 8mm by 5mm internal airslots while wicking is efficient due to the unified wick port designs. The V12 RBA-T Head is a Triple Coil RBA head with a postless build deck and large central airflow channel. The RBA-T has side mounted hex screws terminals located in the build deck and positive contact, with unified wicking ports. The V12 T12 duodenary coil heads and V12 T8 quadruple coil heads have a range of 60 to 350 and 70 to 320W respectively.
Coil Specifications:
SMOK V12 Engine Coil Family
V12 X4 Quadruple Coil Head
0.15 ohm
Patented Quadruple Coil
60 to 220W
100 to 170W Recommended Range

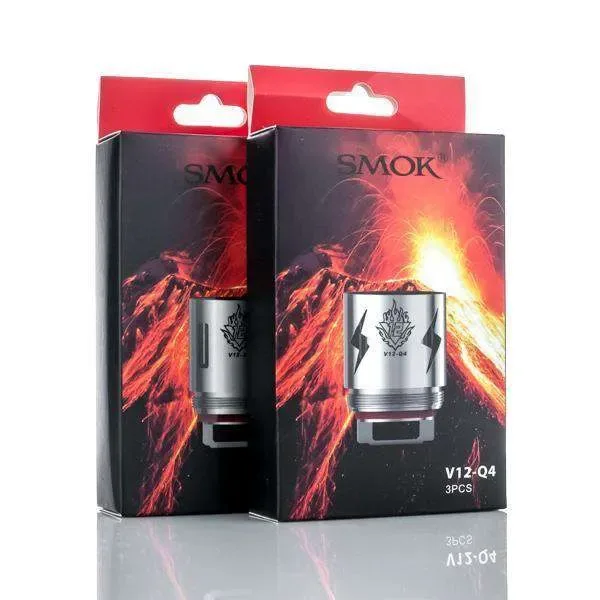

V12 Q4 Quadruple Coil Head
0.15 ohm
Patented Quadruple Coil
60 to 190W
90 to 160W Recommended Range
V12 T6 Sextuple Coil Head
0.16 ohm
Additional Wicking Ports
Auxiliary Wicking
90 to 320W Range
120 to 180W Recommended Range
V12 T12 Duodenary Coil Head
0.12 ohm
Patented Duodenary Coil
60 to 350W Range
130 to 200W Recommended Range
V12 T8 Octuple Coil Head
0.16 ohm
Patented Octuple Coil
70 to 320W Range
120 to 200W Recommended Range
V12 T14 Fourteen Coil Head
0.12
Patented Fourteen Coil
80 to 350W Range
120 to 200W Recommended Range
