Description

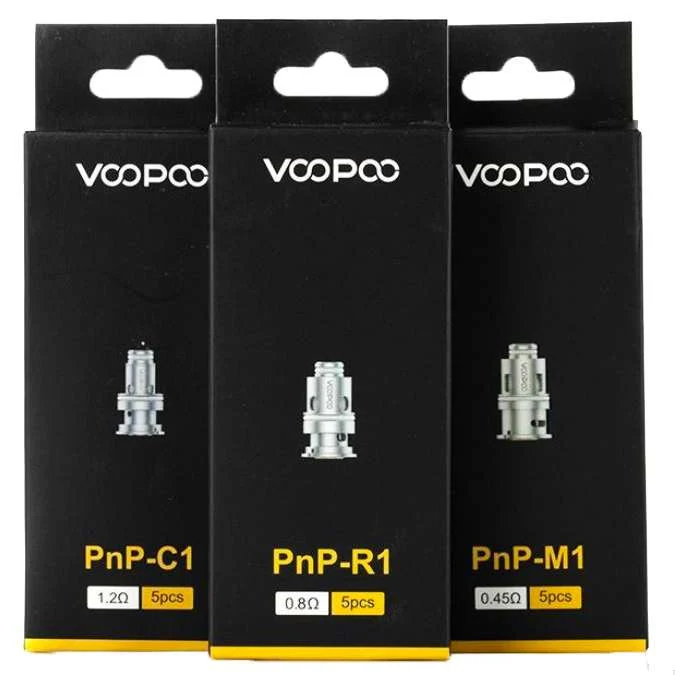

VOOPOO PnP Replacement Coils
Genuine VOOPOO PnP coils in 17 core types, from a 0.15Ω mesh built for heavy cloud production down to a 1.2Ω MTL coil built for a tight, cigarette-like draw. Match the coil to your device’s wattage range and how you actually vape — the full breakdown is below.
Before you order: check your device can actually reach the coil’s rated wattage. A coil run below its minimum wattage delivers weak vapor and a burnt taste no matter how new it is.
Coil Options
CoreTypeResistanceWattage RangeStyle
VM6
Mesh
0.15Ω
60-80W
DL
TW15
Mesh
0.15Ω
55-70W
DL
VM5
Mesh
0.2Ω
40-60W
DL
TW20
Mesh
0.2Ω
40-55W
DL
VM1
Mesh
0.3Ω
32-40W
DL
TW30
Mesh
0.3Ω
28-36W
DL/RTL
VM3
Mesh
0.45Ω
25-35W
DL
VM4
Mesh
0.6Ω
check tank manual
Half DL
TM1
Regular
0.6Ω
20-25W
Half DL
DW60
Regular
0.6Ω
18-23W
RDL
TM2
Regular
0.8Ω
12-18W
Half DL
R1
Regular
0.8Ω
12-18W
MTL
DW80
Regular
0.8Ω
12-16W
MTL
R2
Regular
1.0Ω
10-15W
MTL
TR1
Regular
1.2Ω
10-15W
MTL
VM2
Regular
1.2Ω
check tank manual
MTL
RBA
Rebuildable
0.25–2.0Ω
build your own
—
Compatible With
VOOPOO Drag X • Drag S • Drag 4 • Drag Max • Drag H40 • Drag H80S Kit • Drag E60 Kit • Drag Baby Trio • Vinci • Vinci R • Vinci X • Vinci X2 • Vinci 2 • Vinci 3 Kit • Argus 40W • Argus Air • Argus Pro 80W • UForce-L Tank • V.SUIT • PnP Pod Tank • Navi
FAQ
Q
What’s the difference between Mesh and Regular coils?
Mesh coils (the VM and TW series) heat more evenly across a wider surface, which usually means brighter flavor and a faster ramp-up. Regular coils use a classic wire-wrapped build and tend to run at lower wattage.
Q
How do I know if I want DL or MTL?
DL (direct lung) is a big, airy draw straight to the lungs, like pulling through a straw — that’s the sub-0.5Ω coils at higher wattage. MTL (mouth to lung) is a tighter draw you hold in your mouth first, closer to a cigarette — that’s 0.8Ω and up at lower wattage.
Q
Do I need to prime a new coil before using it?
Yes. Apply a few drops of e-liquid directly to the exposed wicking holes and let it sit 5-10 minutes before your first vape, so the cotton fully saturates. Firing a dry coil can scorch the wick immediately.
Sold as a 5-pack. For use by adults 21+.
